Uudet Grutech pöyhin

We are a manufacturer of agricultural, construction, forestry and municipal machinery.
We cordially invite you to contact us and visit our website grutech.pl


PRICE MODELS Basic
• Construction made of S355 steel
• Non-brand bearings, usually Czech or other
• Gopart or zychyd engines
• Gates Premium tubing

• GTH-SIRH Basic IV 1.2-1.6 m model with automatic hydraulics connection two-sided connection 4800 euro net

• GTH-SIRH3 Basic IV 1.2-1.6 m model with automatic hydraulic connection three-sided connection 5145 euro net

• GTH-SIR Basic IV 1.2-1.6m model with manual connection of hydraulic lines connection on both sides 4045 euro net

• GTH-SIR3 Basic IV 1.2-1.6m model with manual connection of hydraulic lines three-sided connection 4440 euro netto

PRICE
• Real-time belt speed adjustment system from the operator’s cabin, additionally paid Plus 863 euro net Model GTH-SIRHR
• Models for bales 1.2-1.8 plus 588 euro netto .
• 850 mm disc litter adapter instead of the horizontal rotor on springs plus 648 euro GTH-SIRHT model
• Machine without a bedding adapter Model GTH-RB/ GTH-RBH manual cable connection 666 for Basic models and 768 euro netto for
Premium models
•• Cover bending is necessary when bedding from the feed corridor 400 euro netto

MACHINE DESCRIPTION:

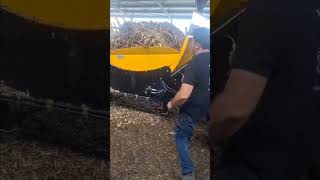

The 2-in-1 GTH-SIRH bale spreader, in two versions
of the fourth generation, is a device for unfolding and
spreading straw bales as well as for unfolding and
distributing haylage from the bale. It is perfect for
drive-through barns, deep-litter barns, and free-stall
barns. in poultry houses, and even when mulching
strawberry plantations.

TECHNICAL DATA:
• Toothed spreader-rotor:
• Straw bedding at a distance of up to 8 m, depending on the machine
setting and straw quality.
• Disc spreader:
• Bedding with a wider radius at a distance of up to 4 m.
• Oil consumption: 140-220 bar and minimum 25-110 l / min this
option is selected individually.
• Connecting the machine with a frame for loading bales in three
positions.
• The amount of the litter straw or the set silage is regulated by a
potentiometer.
• Quick change from bedding to unrolling silage by raising the spreader
arm to the upper position and turning the valve lever.
• The design of the spreader minimizes the fall of straw under the
machine, in strict cases, the possibility of installing special covers.

• The bedding machine can be equipped with an automatic hydraulic
power connection system (i.e. hydraulic lines without leaving the
tractor or loader).
• Such a system significantly improves work.
• With one machine (tractor or loader), we will load the bale and
spread it after leaving the machine only once in order to remove the
net or twine from the bale.
• The structure of the Bedding Machine is designed for continuous
operation.
• As standard, all models are equipped with a limiter frame to determine
the amount of litter, the advantage of using the limiter is that each
bale is unrolled to the end.
• Each machine is checked and pre-set
• Powder painting.
• Each model can be retrofitted with additional available accessories
at any time without any problems and effort
